UL1007 應用范圍：

用于一般電子、電器設備內部連線，當暴露于有油環境時，不得超過 60℃或 80℃可被 UL10982 & UL3385 代用

此線型耐油性可選

應用標準：UL758，UL1581 及 CSA C22.2 No.210.2

UL1007 電纜結構：

導體：使用 32-16 AWC 單根或絞合裸銅或鍍錫銅線

絕緣：聚氯乙烯絕緣

芯線顏色：任意顏色

UL1007 特性：

使用標準厚度、易剝、易裁。具有抗酸堿、耐油、防潮、防霉、環保等特性

UL1007 技術參數：

額定電壓：300V

測試電壓：2000V

額定溫度：80℃

燃燒測試：通過 UL VW-1 及 CSA FT1 垂直耐燃測試

UL1007 Applications：

For general purpose internal wiring of electronic and electrical equipment, Max temperature 60℃ /80℃

The oil resistance type cable is avairable

Application standard: UL758, UL1581 & CSA C22.2 No.210.2

For general purpose internal wiring of electronic and electrical equipment, Max temperature 60℃ /80℃

The oil resistance type cable is avairable

Application standard: UL758, UL1581 & CSA C22.2 No.210.2

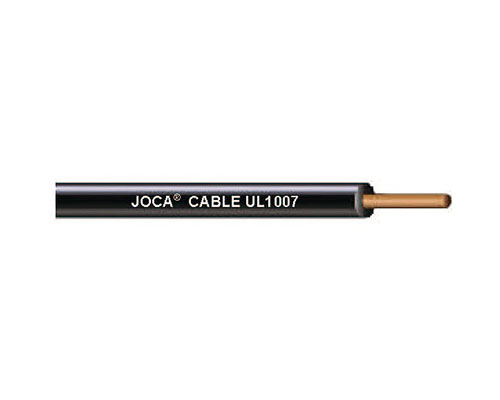

UL1007 Structure:

Conductor: 32-16AWC solid/strand bare copper/tinned copper

Insulation: PVC

Color: Any

UL1007 Characteristic:

Uniform thickness of wire to ensure easy stripping and cutting. Oil-resistance, Resistance to acid and alkali, moistureproof, mould proof, environmental etc

UL1007 Technical parameters:

Voltage Rating: 300V

Test Voltage: 2000V

Temperature: 80℃

Flame Test: Pass UL VW-1 & CSA FT1  vertical ?ammability
