0.6/1KV Rated XLPE Power Cable

Home  JOCA Product  0.6/1KV Rated XLPE Power Cable

XLPE Insulated Cable for rated Voltage 0.6/kV

Series : 0.6/1KV Rated XLPE Power Cable

keywords : XLPE Insulated Cable for rated Voltage 0.6/kV|0.6/1KV Rated XLPE Power Cable|XLPE Insulated Cable for rated Voltage 0.6/kV

Description : 電纜的結構尺寸Cable structure & size電纜技術參數Cable techn...

021-57186991

Contact

Description

Parameters

Description

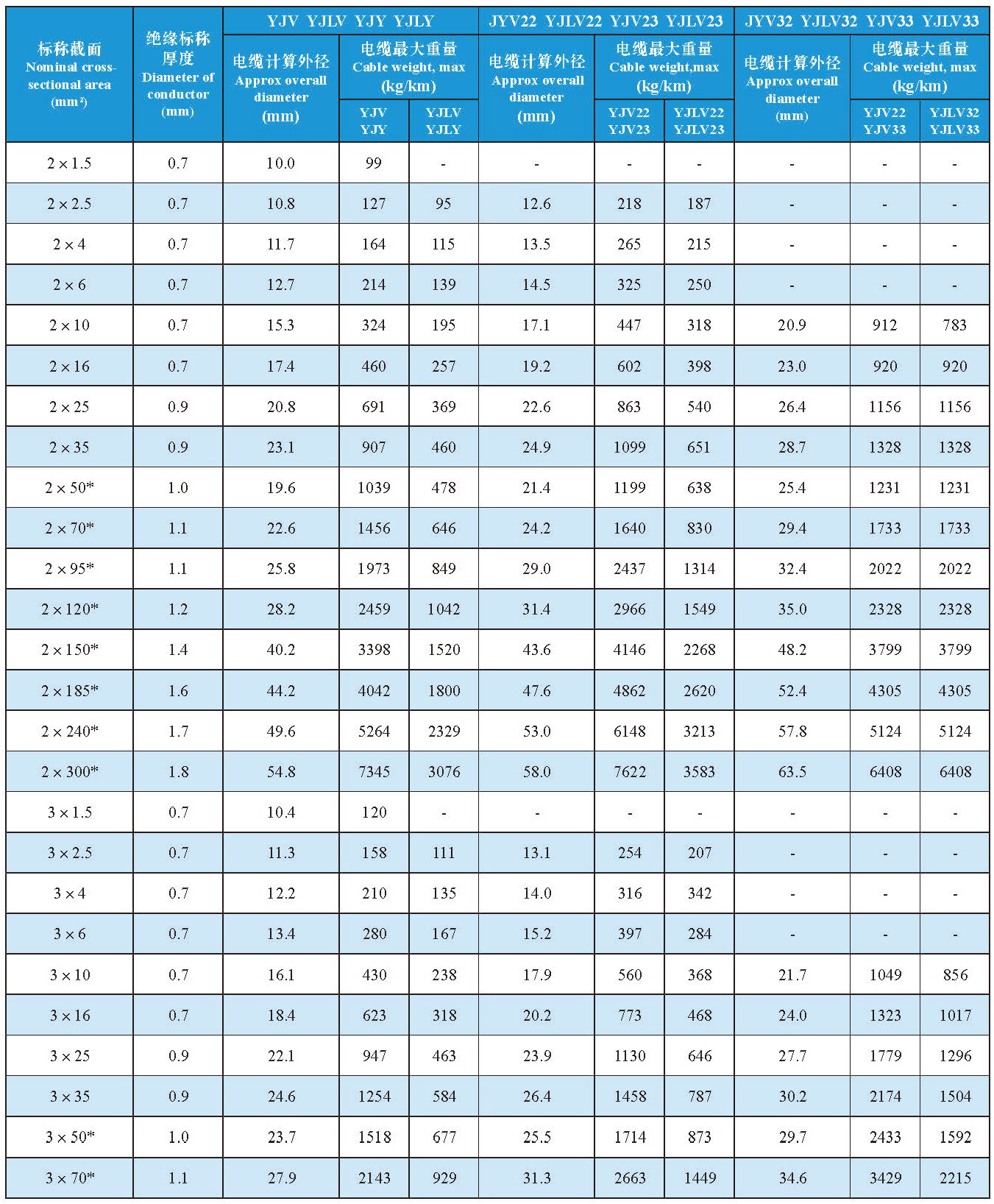

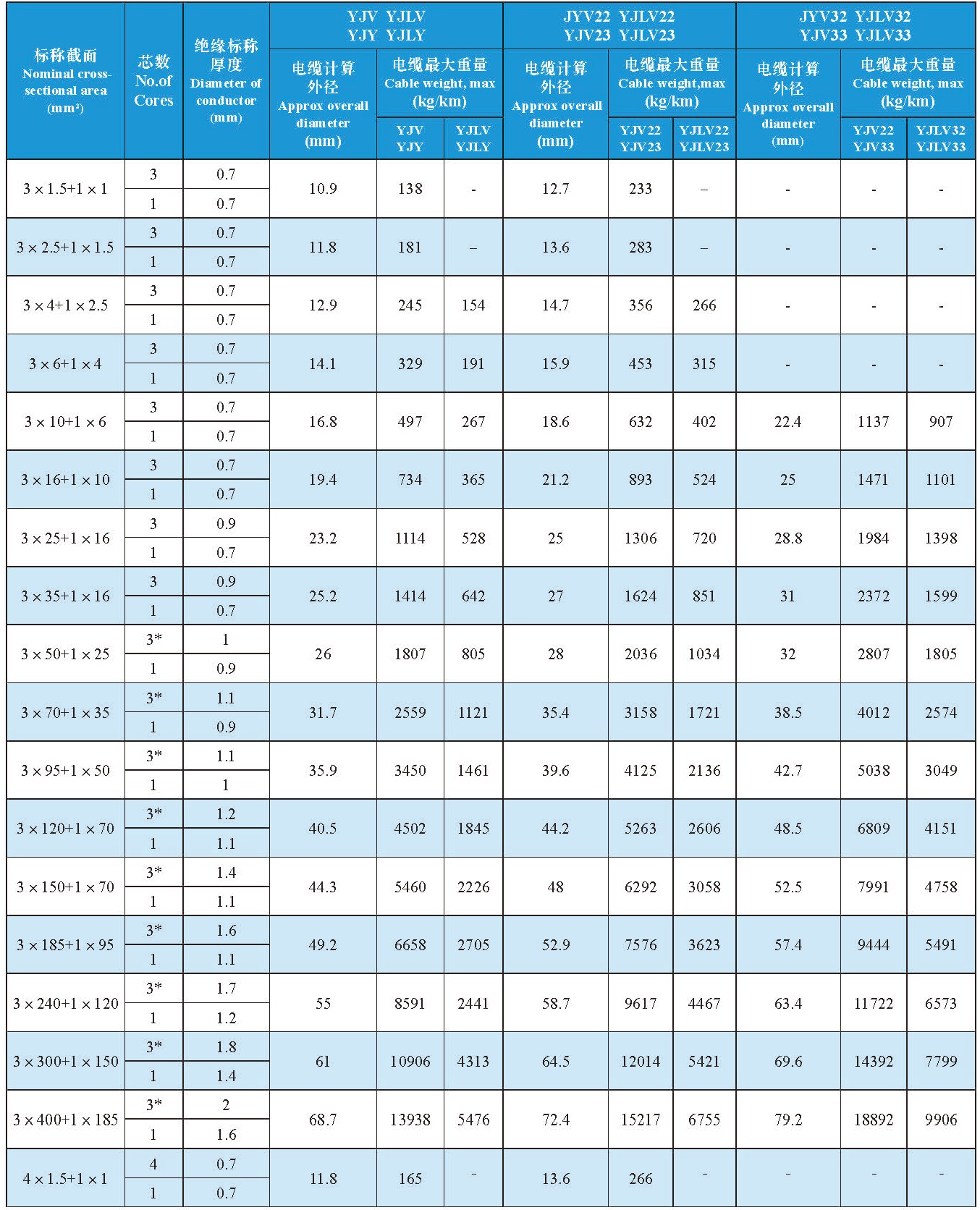

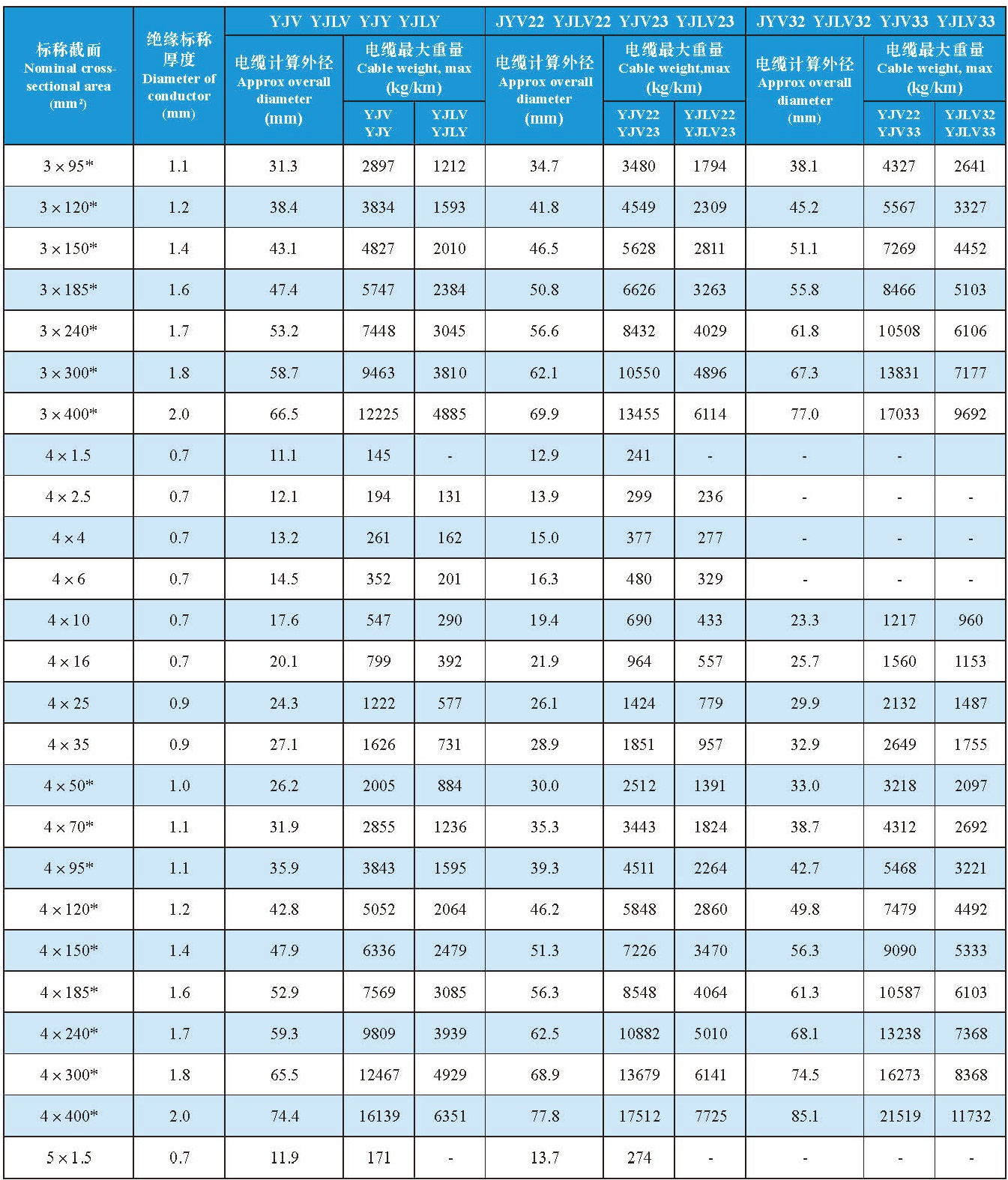

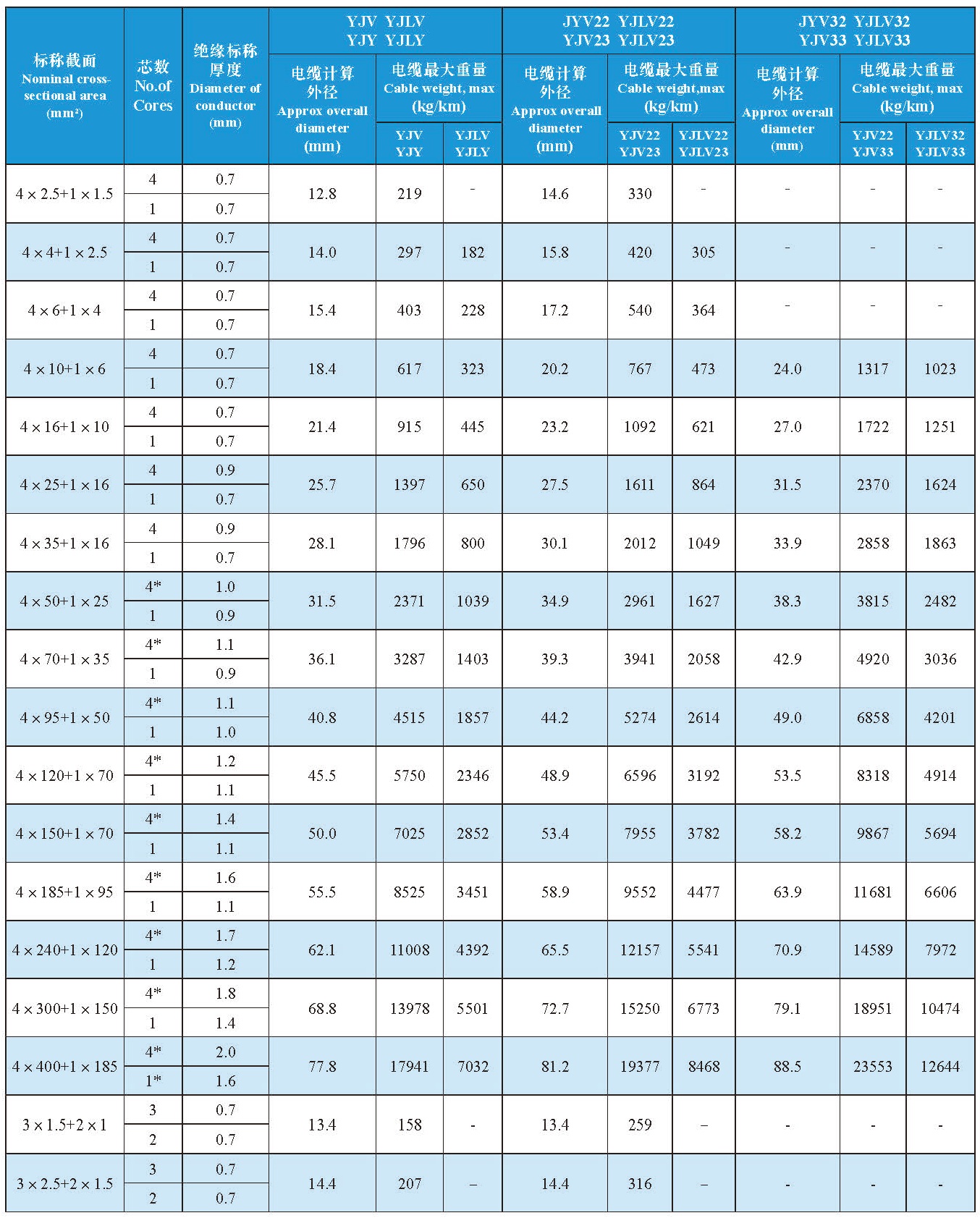

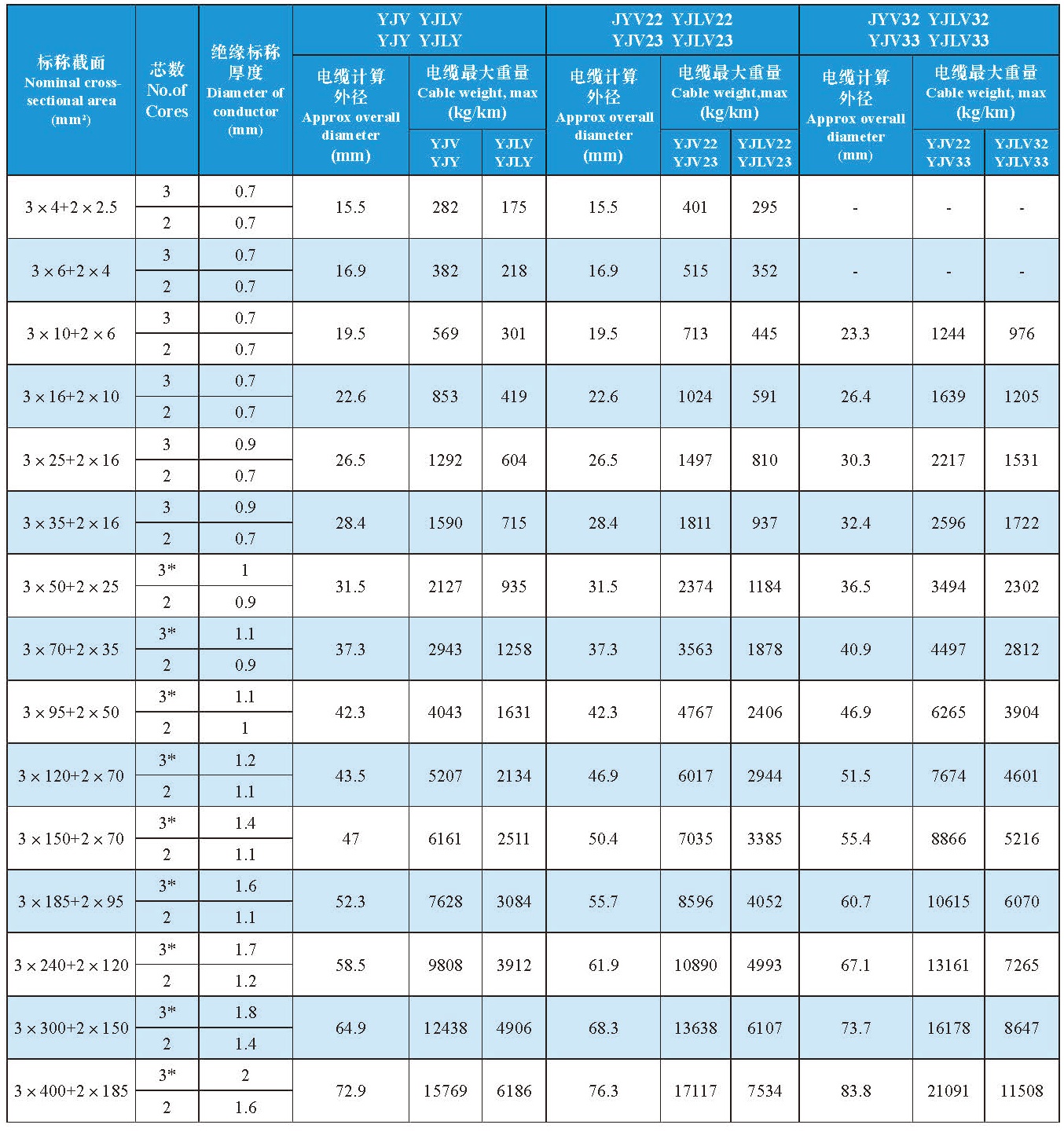

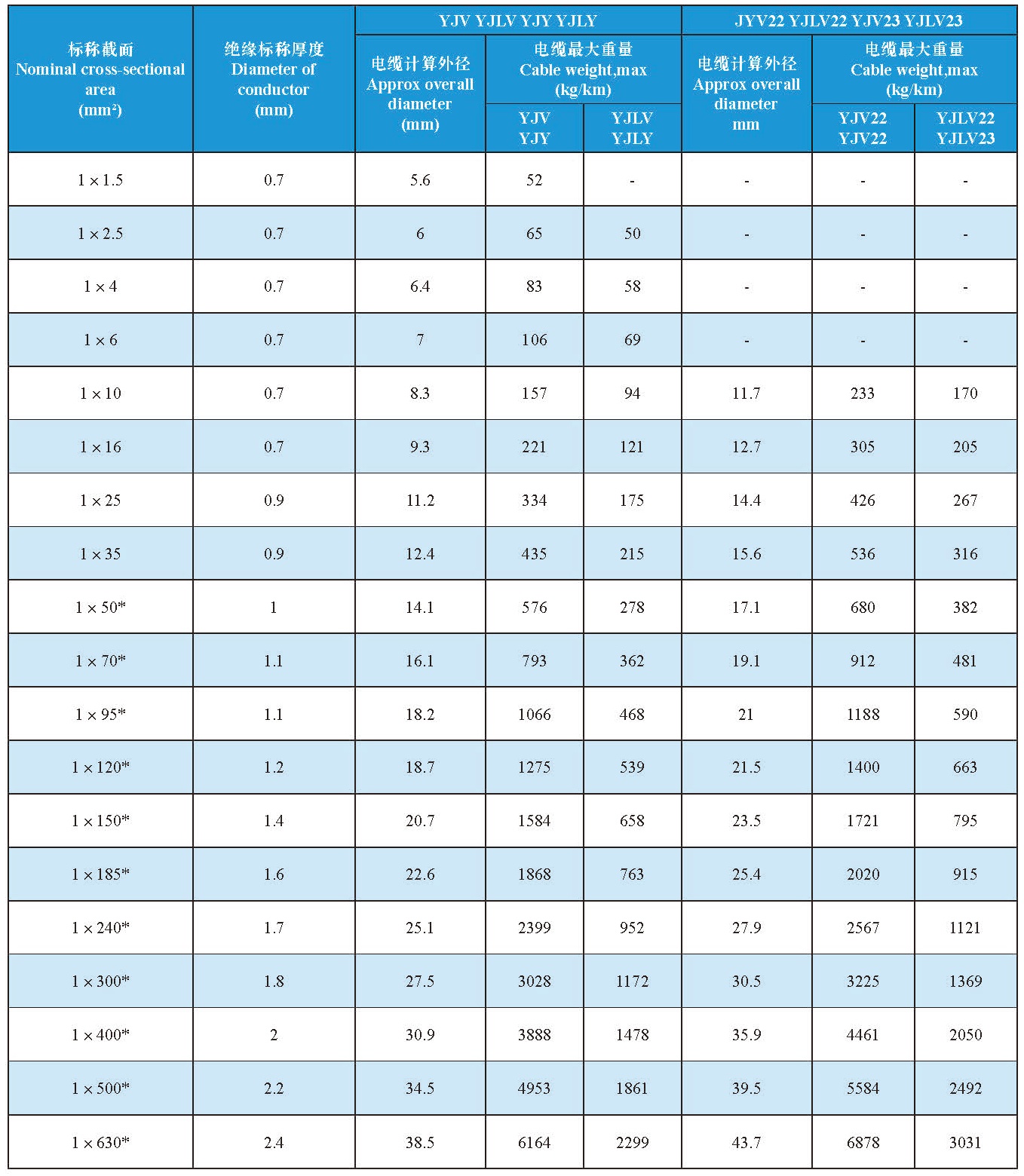

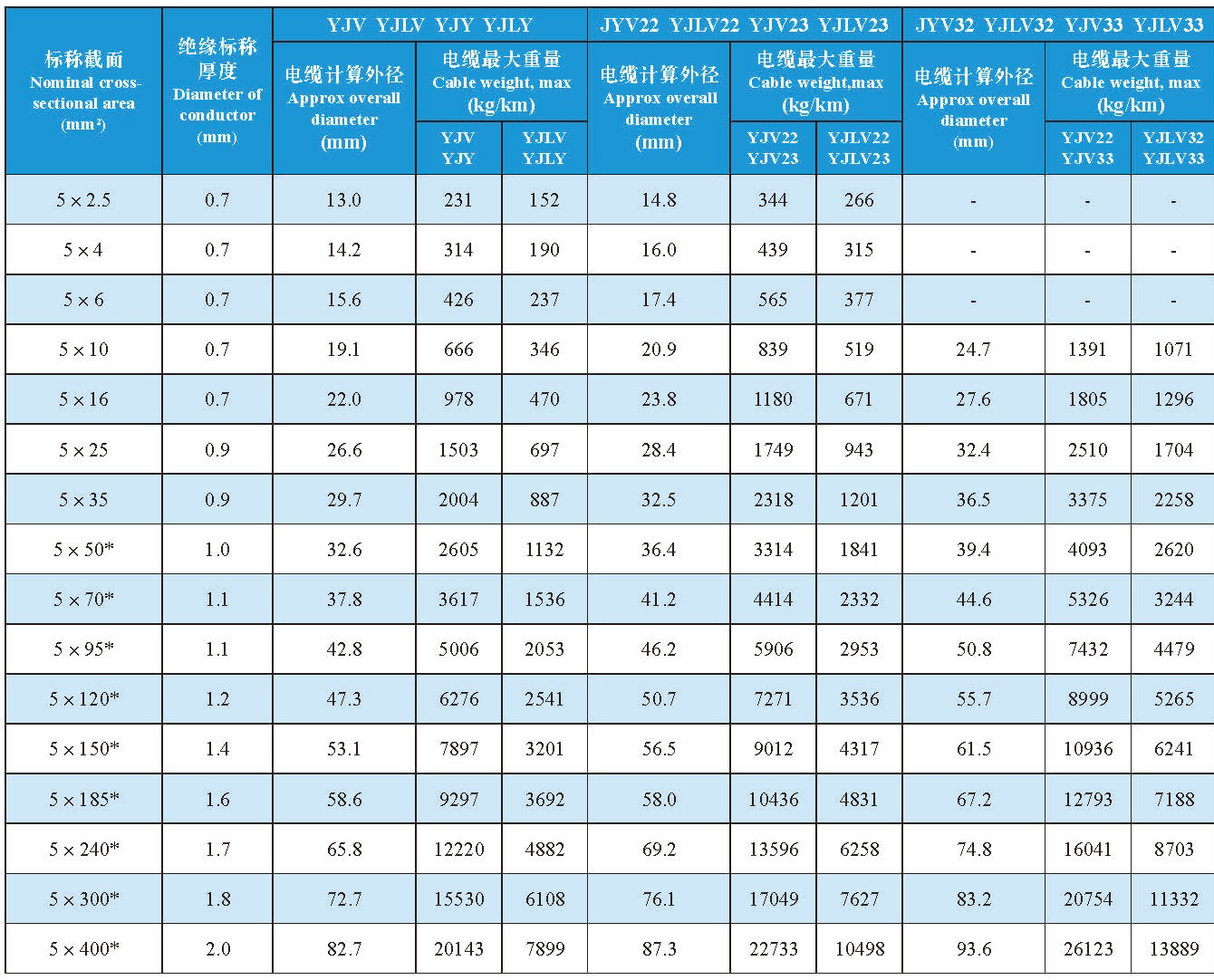

電纜的結構尺寸Cable structure & size

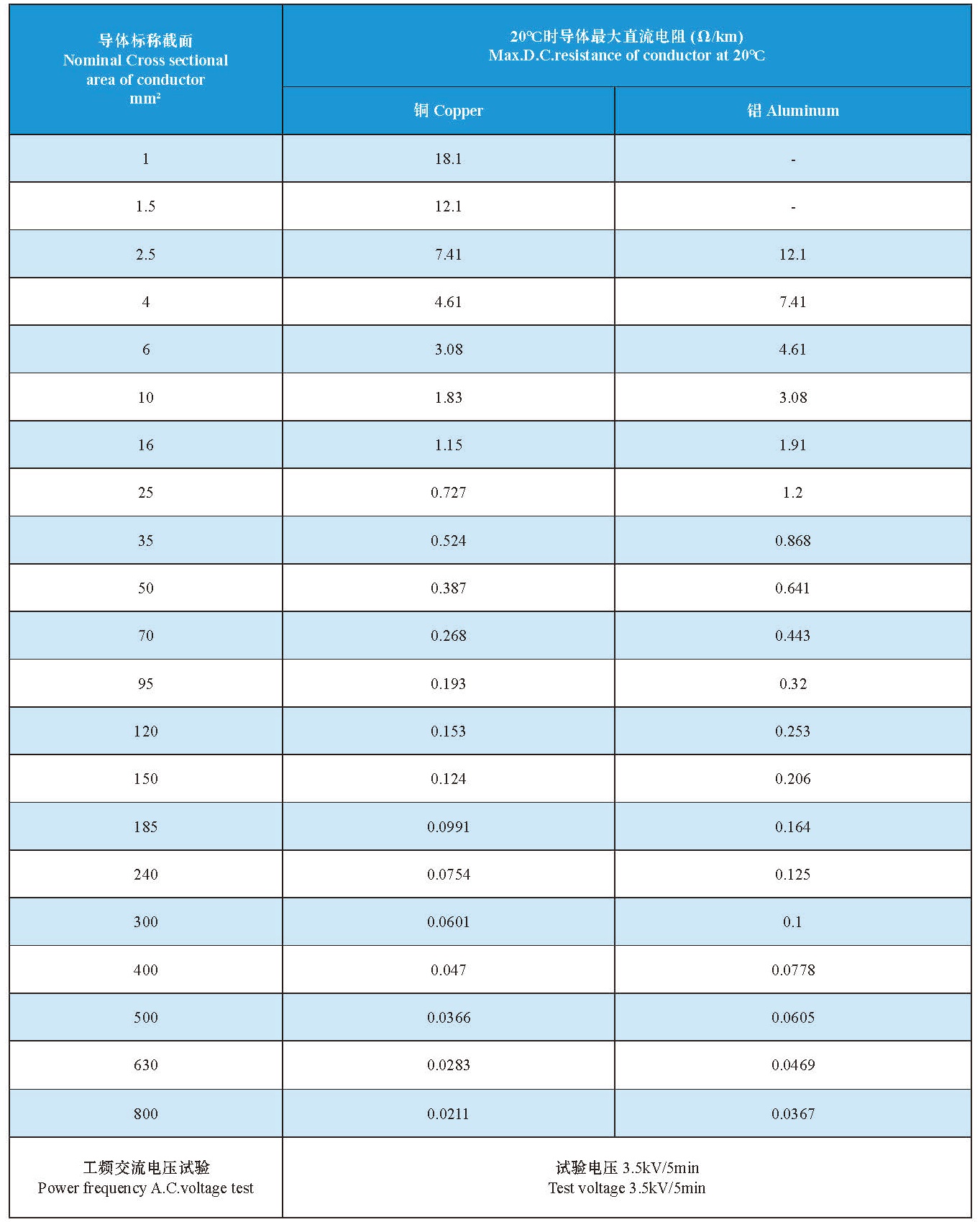

電纜技術參數

Cable technical parameter

97-11

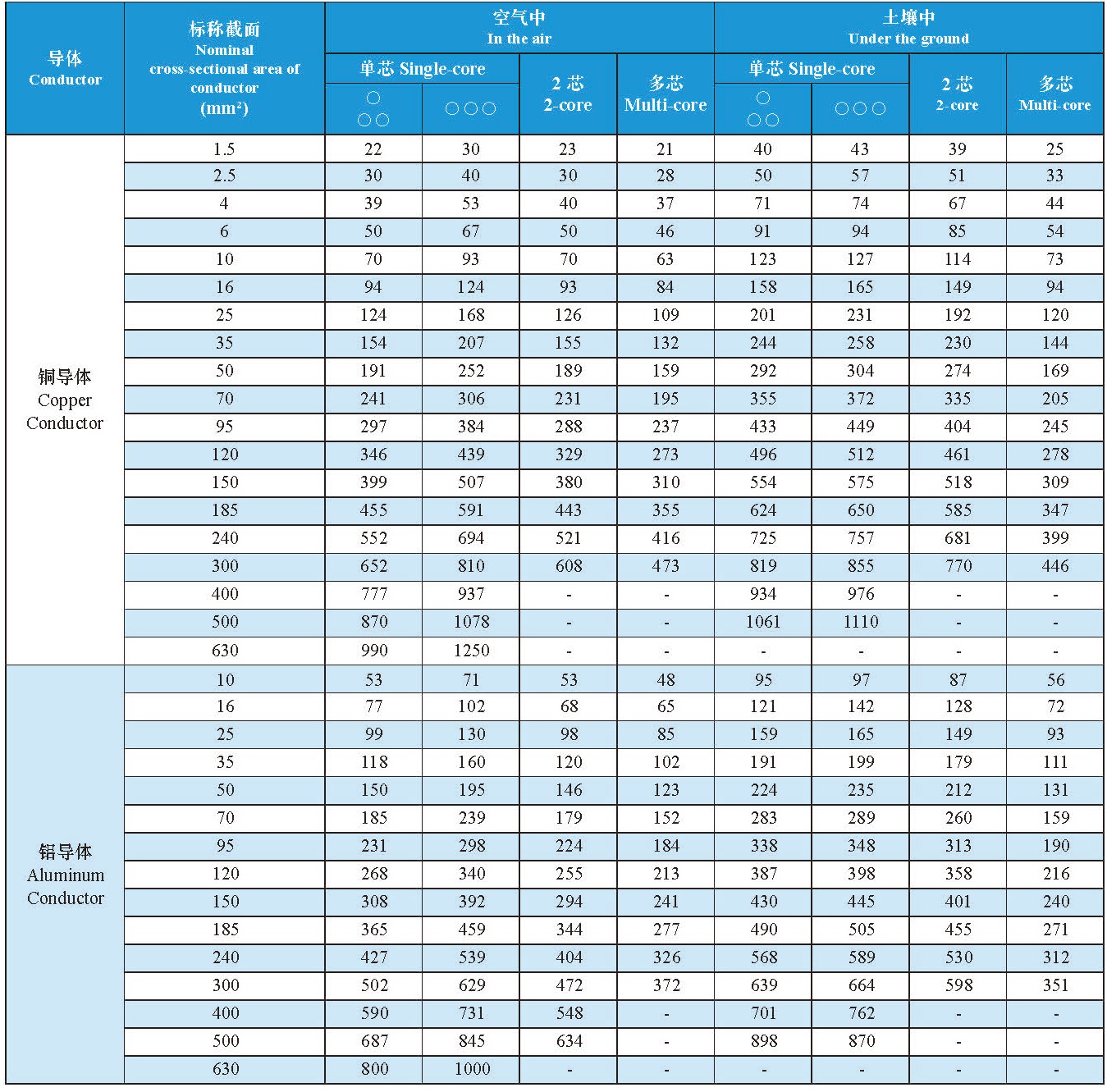

電纜載流量

Cable carrying capacity

97-12

注：用于交流系統的單芯鋼絲鎧裝電力電纜的屏蔽銅帶及鋼絲 ( 含所有隔磁銅絲）必須充分、有效接地。本載流量是按 IEC 推薦公式計算的。GB/T 12706-2002 認為單芯特殊結構鋼絲鎧裝電力電纜實際載流量比 IEC 推薦載流量大為降低，截面選擇宜適當放大。

Note: The copper-tape-screen and steel wire of single-core steel wire armorde power cable for AC system must be connected to earth well and effectively.The current

carrying capacity is calculated by formulas of IEC.It is advised in the new edition of GB/T 12706 that the current carrying capacity of steel wire armored power

cable with special structure is lower than that in IEC standard,so the cross-section should be enlarged appropriately.

Parameters

97-10 97-9 97-8 97-7 97-6 97-5
