                                      H05VV5-F
                                      Series : CE Approved Electrical Installation & Hook-up Wire
                                      keywords : H05VV5-F|CE Approved Electrical Installation & Hook-up Wire|H05VV5-F
                                      Description : H05VV5-F  Application Scope:For application i...
                                      021-57186991
                                      Description
                                      Parameters
                                      Description

                                      H05VV5-F  Application Scope:

                                      For application in dry or moisture indoor environment, where no strong stress release or installation in occasionally compulsory guided movements, as well as occasionally bending moving environment like CNC, woodworking machines, grinders etc.


                                      H05VV5-F Structure:

                                      Conductor: Stranded bare copper or tinned copper, in accordance with VDE 0281 Part 5HD21.5S3 IEC 227-5

                                      Insulation: PVC/TI2 in accordance with DIN VDE 0281

                                      Color recognition: Within 5cores are brown, black, light blue, black or brown, yellow/green; ≥ 0.5mm with black  number, & white number to distinguish, Y/G earth wire is included with cables that are more than 5cores.

                                      Sheath material: PVC/TM5 PVC PVC/TM5

                                      Application standard:  IEC227-7: 1995

                                      H05VV5-F Characteristics and Conformity:

                                      Features: supper flex copper wire conductors, supper flex bending radius.

                                      Water proof, oil resistance at normal working temperature of 40℃In accordance with EU coordination standard

                                      Bending life longer than ordinary installation cable but not used as drag chain cable

                                      Conformity Approval: RoHS CE

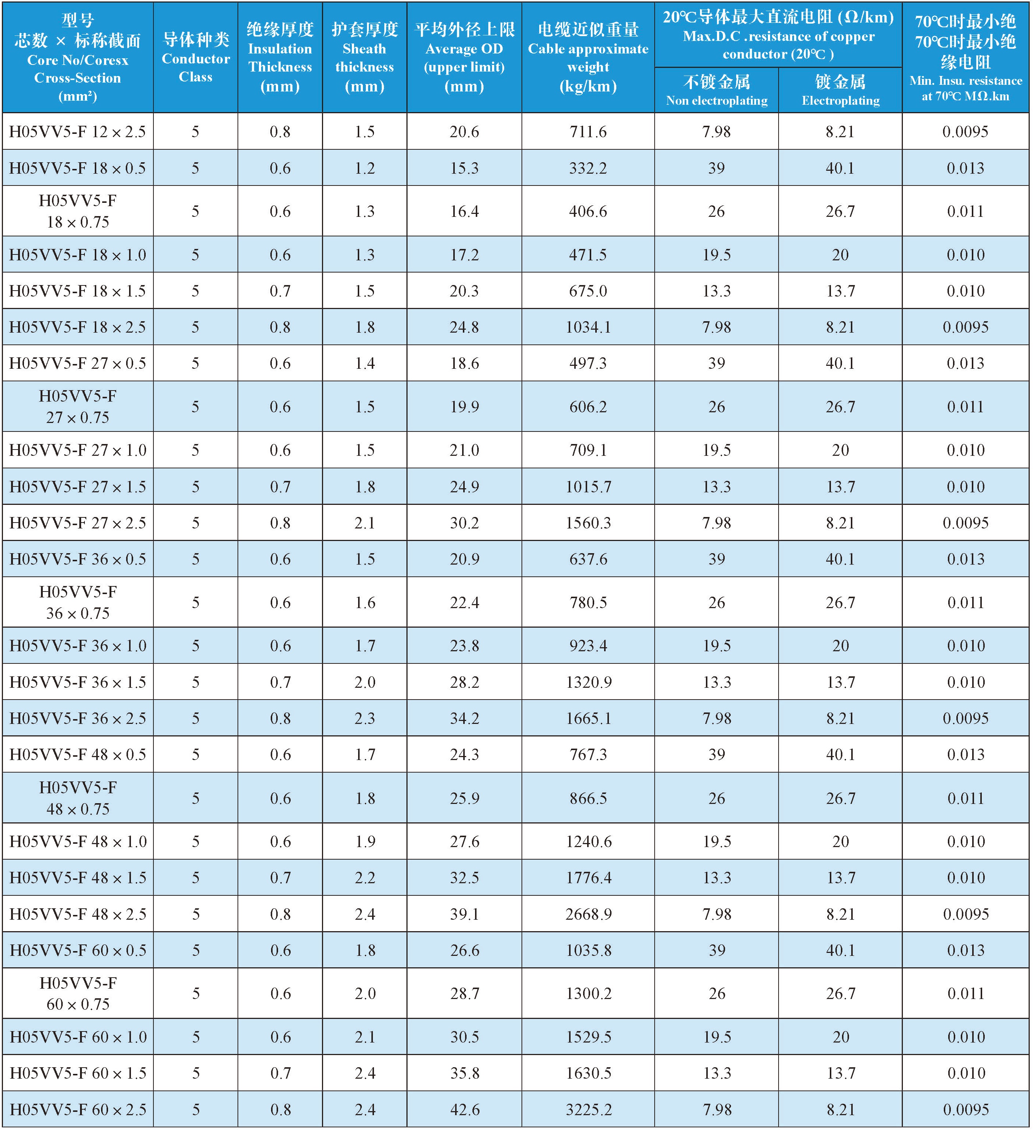

                                      H05VV5-F Technical Parameters:

                                      H05VV5-F Technical Parameters:

                                      Parameters
