UL1283 - UL Approved Electronic Installation and Hook-up Wire-JOCA Product

UL Approved Electronic Installation and Hook-up Wire

UL1283

Series : UL Approved Electronic Installation and Hook-up Wire

keywords : UL1283|UL Approved Electronic Installation and Hook-up Wire|UL1283

Description : UL1283 Application Scope:For internal wiring of el...

021-57186991

Contact

Description

Parameters

Description

UL1283 Application Scope:

For internal wiring of electronic, electrical equipment

Reference Standard: UL758, UL1581 and CSA C22.2 NO.210.2

UL1283 cable structure:

Conductor: 8-2 AWG single or stranded bare copper or tinned copper wire

Insulation: polyvinyl chloride

Color: Any color

UL1283 Characteristic:

Standard thickness, easy to peel, easy to cut, has good shielding

UL1283 technical parameters:

Rated voltage: 600V

The test voltage: 2000V

Rated temperature: 105℃

Combustion tests: pass UL, CSA FT1 and JQA VW-1 F- Mark ?ame retardant test

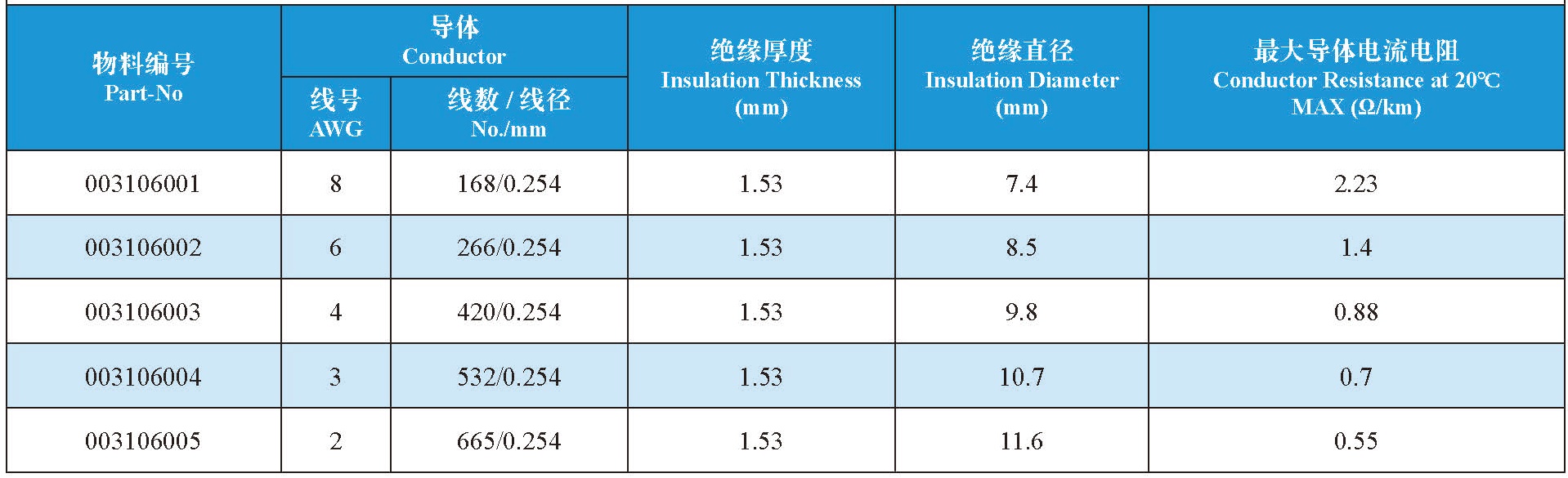

Parameters

46-2
