HJ Series Local network radio frequency coaxial cable

Series : JOCA Product

keywords : HJ Series Local network radio frequency coaxial cable|JOCA Product|HJ Series Local network radio frequency coaxial cable

Description : Application: Mainly used for wiring between the tr...

021-57186991

Contact

Description

Parameters

Description

Application: Mainly used for wiring between the transmission equipments in communication system machine room.

Characteristic: The working frequency range of cable is 1MHz-200MHz

Standard: YD/T 1174-2001

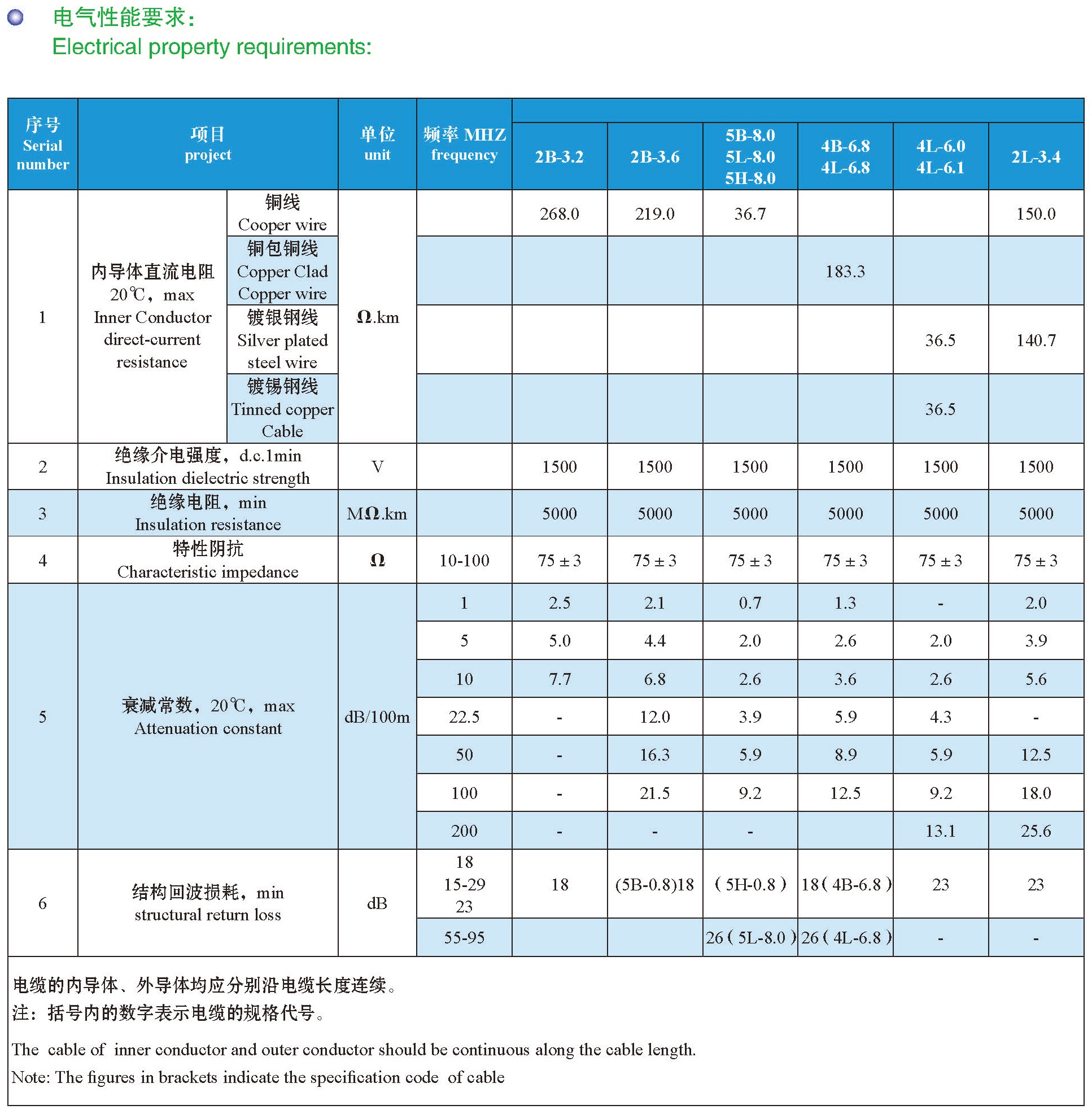

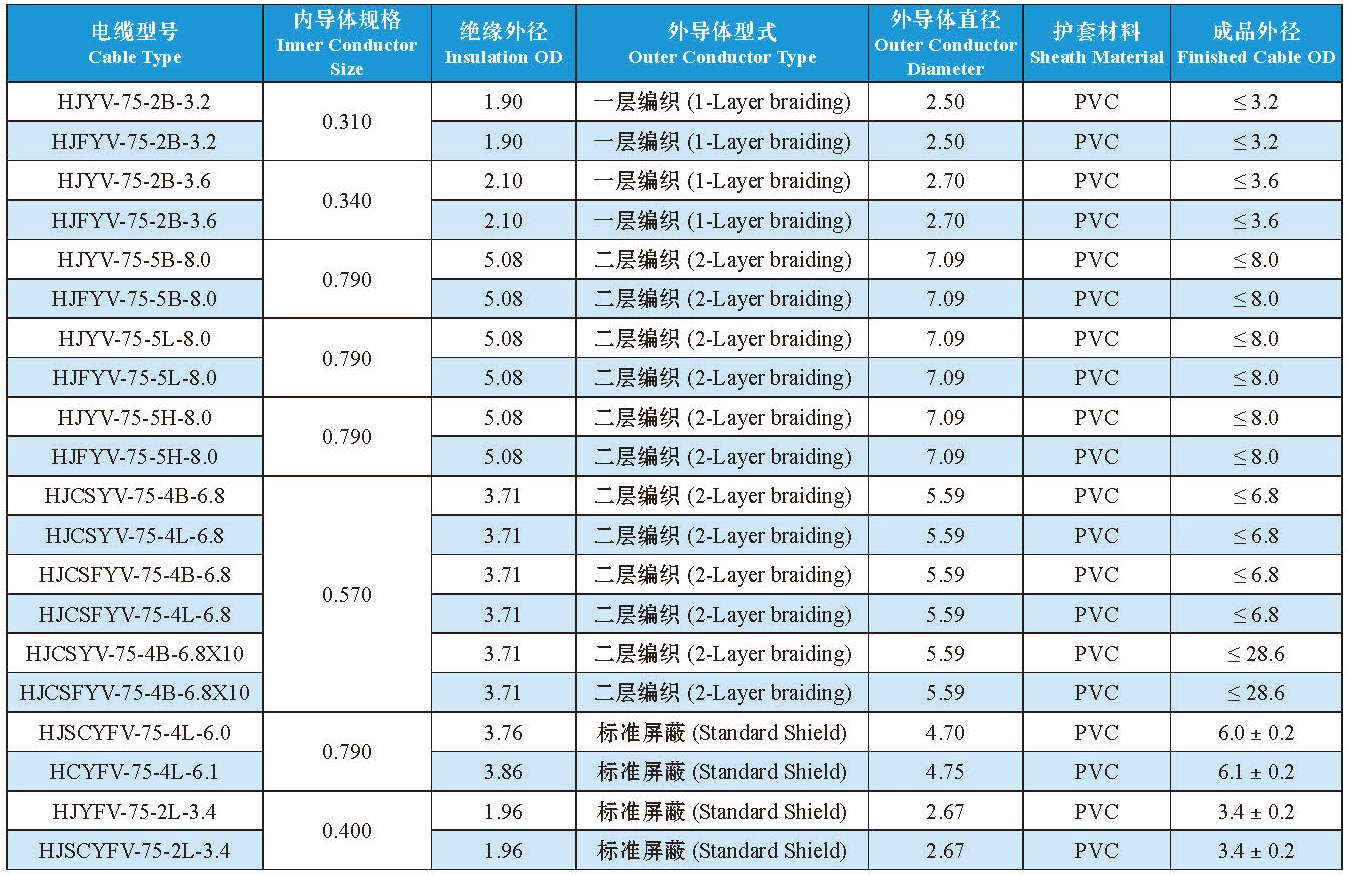

Parameters

玖開彩頁中英文版151104_頁面_06_看圖王

玖開彩頁中英文版151104_頁面_07_看圖王

多單位型電纜中的每個 4B-6.8 電纜單位的全部要求應與4B-6.8 電纜相同（除應具有標識條紋、標識環或標識數字外）。

注 1：耐氣候性電纜可以用于室外。

注 2：若用戶要求，也可以用 2B-3.2、4L-6.1、2L-3.4電纜制作多單位型電纜，其電纜單位數（包手 4B-6.8 電纜）也可以為任意個。

注 3：若用戶要求，也可以互換實心聚乙烯和泡沫聚乙烯絕緣材料。

The all requirements of Multiple unit type4B-6.8 cable should be the same as with the 4B-6.8 cable in each unit (Except with the identification stripe, identification circle or the identification number ).

Note 1: Weather resistant cable can be used for outdoor.

Note 2: If the user has requirements, 2B-3.2, 4L-6.1, 2L-3.4 cable can also be used as multiple units cable and the cable units (including cable 4B-6.8 cable) can be any quantity.

Note 3: If the user has requirements, the insulation materials of solid polyethylene and foam polyethylene can be interchanged.
