RG Series Solid PE insulated RF coaxial cable

Series : JOCA Product

keywords : RG Series Solid PE insulated RF coaxial cable|JOCA Product|RG Series Solid PE insulated RF coaxial cable

Description : RG Series Cable Mainly used in coaxial optical hyb...

021-57186991

Contact

Description

Parameters

Description

RG Series Cable Mainly used in coaxial optical hybrid network (HFC) to transfer the analog signals, can be used with North American all kinds of connectors. Also can be used for computer network (such as Ethernet) interconnection, The RG series cable types is complex. Many RG cable is difficult to be found in the present MIL standard. The structure sizes are in accordant with user's need and structure of the corresponding as standards.

Reference standards: America SCT standard, YD/T897-1997

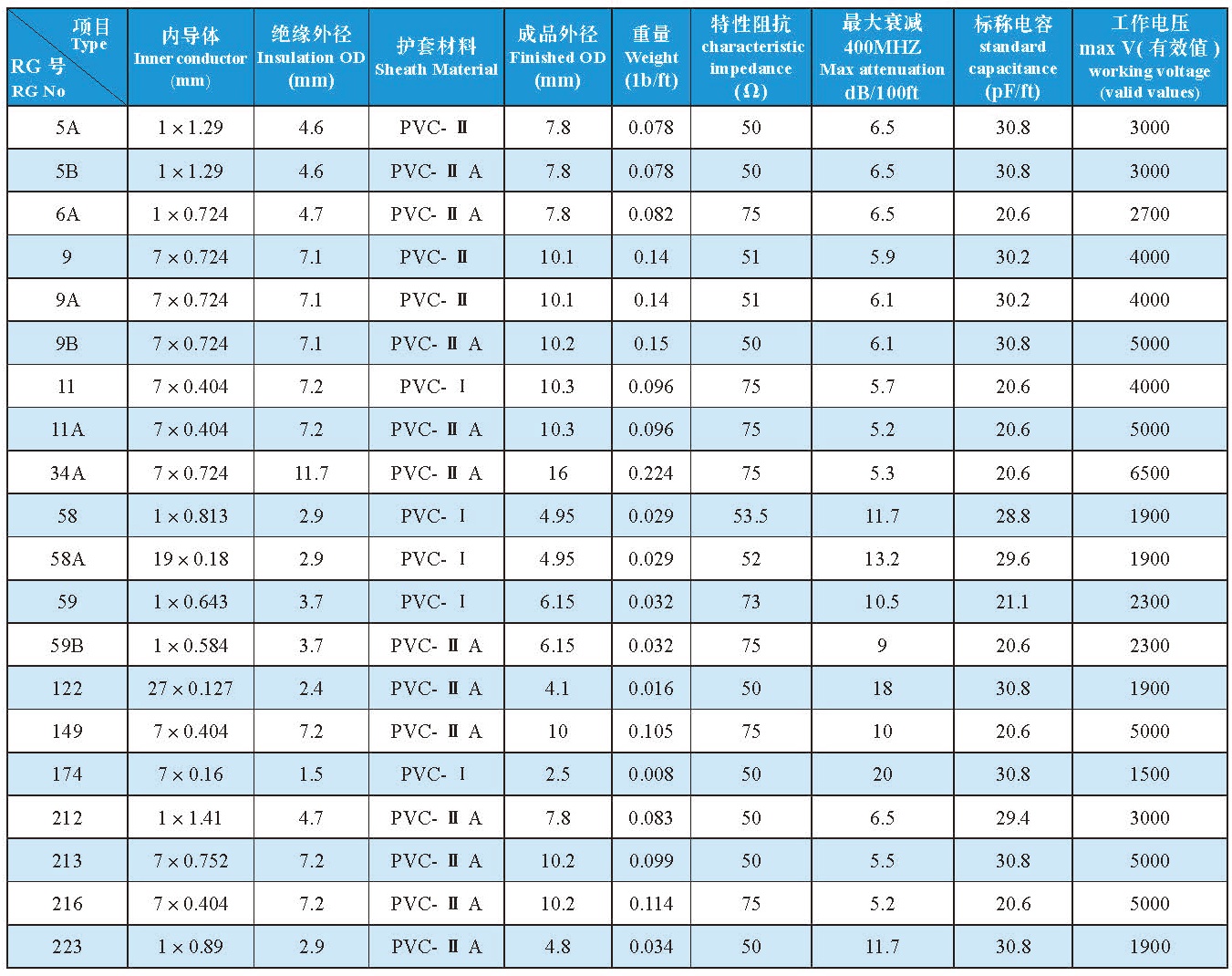

Parameters

4-1

注 1：BC- 裸銅線、TC- 鍍錫銅線，SC- 鍍銀銅線、 CCB- 銅包銅錢、PVC-|- 黑色 | 型、污染型聚氯乙烯（見MIL-C-17），PVC-||A 黑色 || 型、非污染聚氯乙烯（見MIL-C-17）。

2：1in=25.395mm 1ft=0.3047m 1b=0.45kg

Note 1: BC-Bare Copper, TC-Tinned Copper, CCB-Copper Clad Bronze, SC-Silver plating Copper, PVC-I Black I Type, The polluted polyethylene (See MIL-C-17), PVC-II Black II Type, un-polluted polyethylene (See MIL-C-17).

2: 1in=25.395mm 1ft=0.3047m 1b=0.45kg
