Plastomer Insulated Control Cable

Home  JOCA Product  Plastomer Insulated Control Cable

Plastic Insulated Control Cable

Series : Plastomer Insulated Control Cable

keywords : Plastic Insulated Control Cable|Plastomer Insulated Control Cable|Plastic Insulated Control Cable

Description : Product standardThis product is manufactured accor...

021-57186991

Contact

Description

Parameters

Description

Product standard

This product is manufactured according to GB 9330“plustic—insulated control cable”and enterprise standards.

Applicable scope

For system connection wire of control,signal,protection or measuring for rated voltage up to and including450/750V.

Using features

Rated voltageUo/U: 450/750V

Permissible Max. continuous operating temperature of conductor

PVC insulated:70℃ ; XLPE insulated:90℃

Upon short circuit(Max. Duration time 5s) The Max temperature of conductor not higher than

PVC insulated: 160℃ ; XLPE insulated:250℃ .

Ambient temperature of installation not less than 0℃

Prefered Permissible bending radium:

For non-armoured cable, not less than 6 times of cable diamete; For armoured or copper-tape-screened cable, not less than 12 times of cable diameter; For screened ?exible cable, not less than 6 times of cable diameter.

Parameters

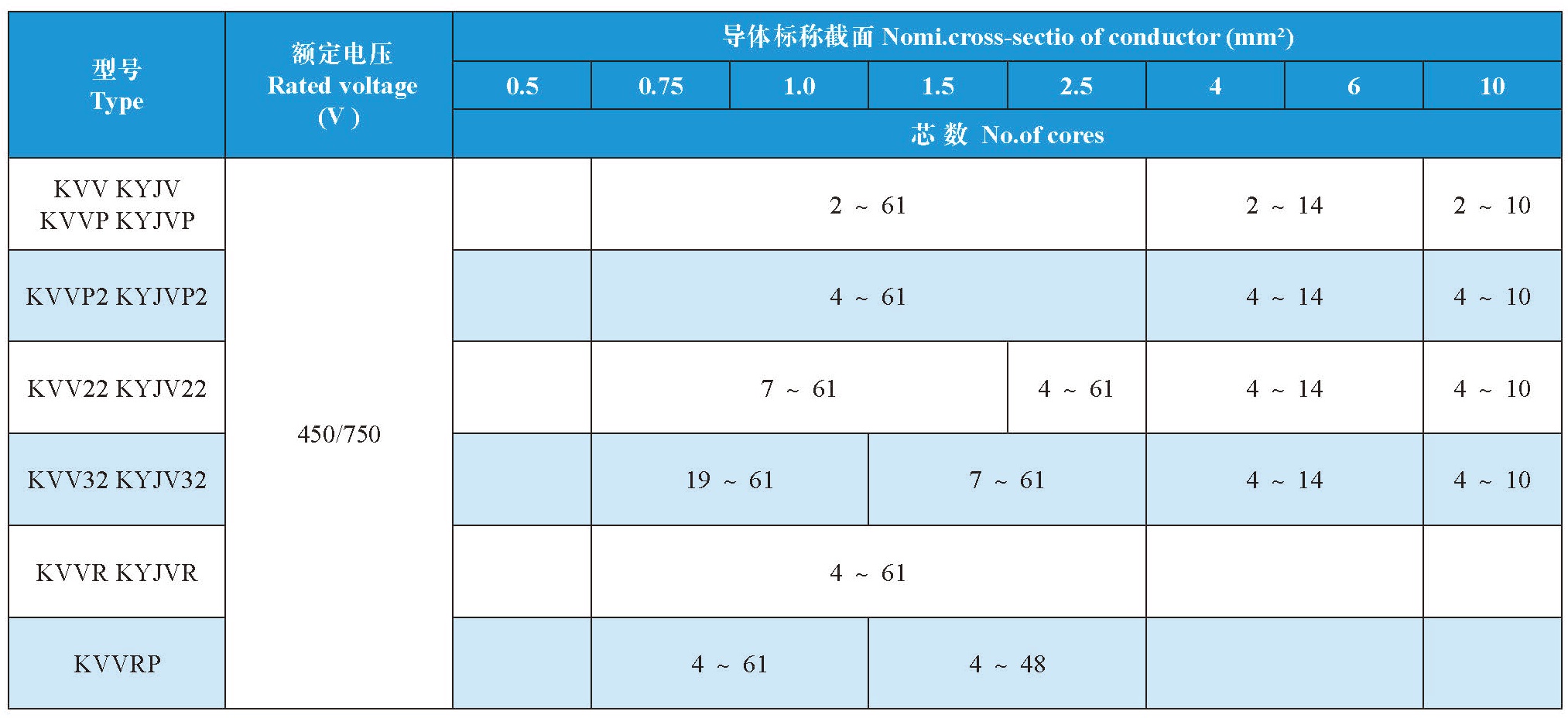

Cable Production scope

Note: 1) preferred number ofcores:2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61.

2)The special types of fire-retardent,flame-resisting,low-fume and ow-halogan,low-fume and non-halogan as well as acid-alkali-proof for these cables may be supplied upon requests.
