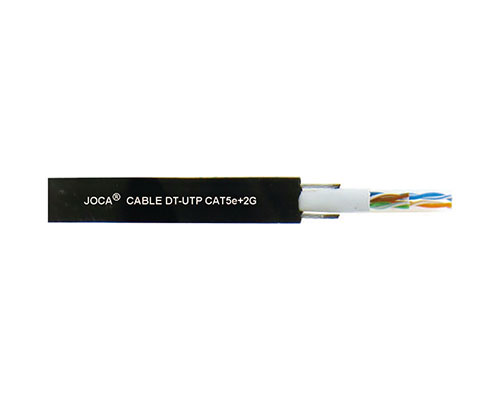

reinforced ?at or ?gure8 elevator cable with network cable

Series : Elevator Cable

keywords : reinforced ?at or ?gure8 elevator cable with network cable|Elevator Cable|reinforced ?at or ?gure8 elevator cable with network cable

Description : Product Structure:Conductor: Meet GB 3956 Class5 o...

021-57186991

Contact

Description

Parameters

Description

Product Structure:

Conductor: Meet GB 3956 Class5 or class6 conductor standard.

Insulation: special PVC PVC compound insulation

Shielding: Bare (or electroplating) copper braiding

Reinforced core: Steel rope, meet YB/T5196

Video Core: bare copper and CCS conductor, low interference 75Ω coaxial video cable

Network cable: bare copper wire flexible conductor, Category5, 5e, Category6, Category7 network cable, unshielded or shielded network cable.

Sheath material: PVC/ST5 special PVC, black or gray (RAL7001)

Application Standard: Enterprise Standard

Technical parameters:

Rated voltage: Nominal conductor cross section 1mm2 or 1mm2 less cable: 300/500 v

Test voltage:

rated voltage 300/500V, insulation thickness ≤ 0.6 mm:1500v, Finished cable test voltage: 2000 v,

Cable laying installation allowed bending radius should not less than 6 times of the cable's smaller side.

Temperature range: - 15 to + 70 ℃

Flame retardant test: Pass GB/T 18380.1 2001 test

Application range:

Suitable for hanging inside the elevator for the accompanying freely hanging length less than 80meters, and the moving speed of no more than 10m/s with monitoring, serial communication requirements, Shielded cable with particularly anti electromagnetic interference property.

Characteristics and compliance:

Anti-bending of features:

Excellently ?exible & bendable;

Good oil resistance, cold resistance, resistant to moisture Excellent wear resistance, bear high mechanical stress

Conformity: RoHS
