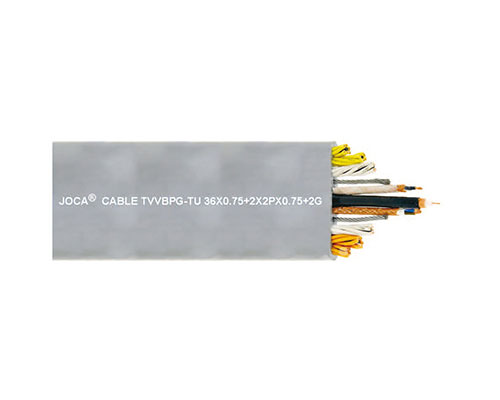

                                      TVVB-TV Flat PVC Sheathed Elevator Cable With Video purpose core
                                      Series : Elevator Cable
                                      keywords : TVVB-TV Flat PVC Sheathed Elevator Cable With Video purpose core|Elevator Cable|TVVB-TV Flat PVC Sheathed Elevator Cable With Video purpose core
                                      Description : Cable structure:Conductor: GB 3956 Class 5, confor...
                                      021-57186991
                                      Description
                                      Parameters
                                      Description

                                      Cable structure:

                                      Conductor: GB 3956 Class 5, conforms to the DIN VDE 0295 and IEC 228 standard stranded wire.

                                      Insulation: PVC/D type PVC insulation

                                      Color recognition: conform GB 5023.1 4.1 color identi?cation for less than 5-core cable, Conform GB 5023.1 4.2 digit recognition for up to 5- core cable.

                                      Shielding: Bare (or electroplating) copper braiding

                                      einforced core: Steel rope, meet YB/T5196

                                      Video Core: Bare copper or copper clad steel conductor, low interference 75Ω coaxial cable

                                      Sheath Material: PVC/ST5 special PVC, black or gray (RAL7001)

                                      Application Standard: GB/T 5023.6/IEC 60227-6, EN 50214-2006, Enterprise Standard.


                                      Technical parameters:


                                      Rated voltage: Nominal conductor cross section 1mm2 or 1mm2 less cable: 300/500v

                                      Test voltage:

                                      rated voltage300/500V, insulation thickness ≤ 0.6mm: 1500v; Finished cable test voltage: 2000 v;

                                      Rated voltage 450/750v, Insulation thickness>0.6 mm: 2500V; Finished product test Voltage: 2500v

                                      minimum bending radius:

                                      Cable laying installation allowed bending radius should not less than 6 times of the cable's smaller side.

                                      Static torsion Test: comply with the regulations of GB/T 5023.2 3.5

                                      Temperature range: - 15 to + 70 ℃

                                      Flame retardant test: Pass GB/T 18380.1 2001 test


                                      Application range:

                                      Suitable for hanging inside the elevator for the accompanying freely hanging length less than 80 meters, and the moving speed of no more than 10 m/s with monitoring, serial communication requirements, Shielded cable with particularly anti electromagnetic interference property


                                      Characteristics and compliance:


                                      Anti-bending of features:

                                      Excellently ?exible & bendable;

                                      Good oil resistance, cold resistance, resistant to moisture Excellent wear resistance, bear high mechanical stress

                                      Conformity: RoHS
