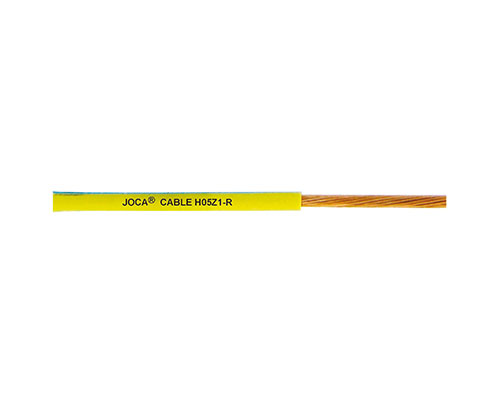

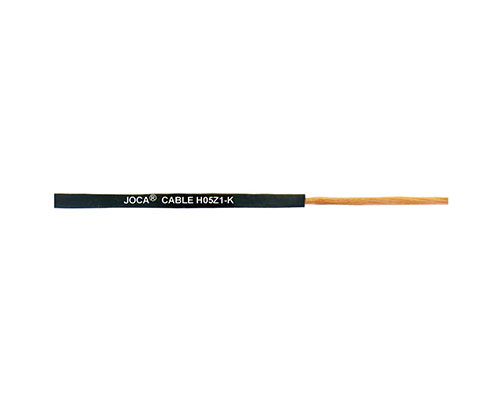

H05Z1-U，H05Z1-R，H05Z1-K

Series : CE Approved Electrical Installation & Hook-up Wire

keywords : H05Z1-U，H05Z1-R，H05Z1-K|CE Approved Electrical Installation & Hook-up Wire|H05Z1-U，H05Z1-R，H05Z1-K

Description : H05Z1-U,H05Z1-R,H05Z1-K Application Scope:Nu...

021-57186991

Contact

Description

Parameters

Description

H05Z1-U,H05Z1-R,H05Z1-K Application Scope:

Nuclear power station, subway station, telephone switching system and computer control center, high-rise buildings, hotels, radio and television, important military facilities, oil platform, etc., as well as where personnel is relatively concentrated or low air density

H05Z1-U,H05Z1-R,H05Z1-K Structure:

Conductor: Solid or Stranded bare copper or tinned copper in accordance with IEC 60228, VDE 0295

Insulation: PVC/TI3 in accordance with DIN VDE 0281

Color ID: in accordance with HD 402 Standard

Application Standard: EN 60332-1-2; EN 60332-3-24

H05Z1-U,H05Z1-R,H05Z1-K Features & Conformity:

Features: Excellent weatherability；

Good softness

In accordance with EU coordination standards the amount of release halogen acid : In accordance with IEC754-1

Conformity Approval: ROHS CE

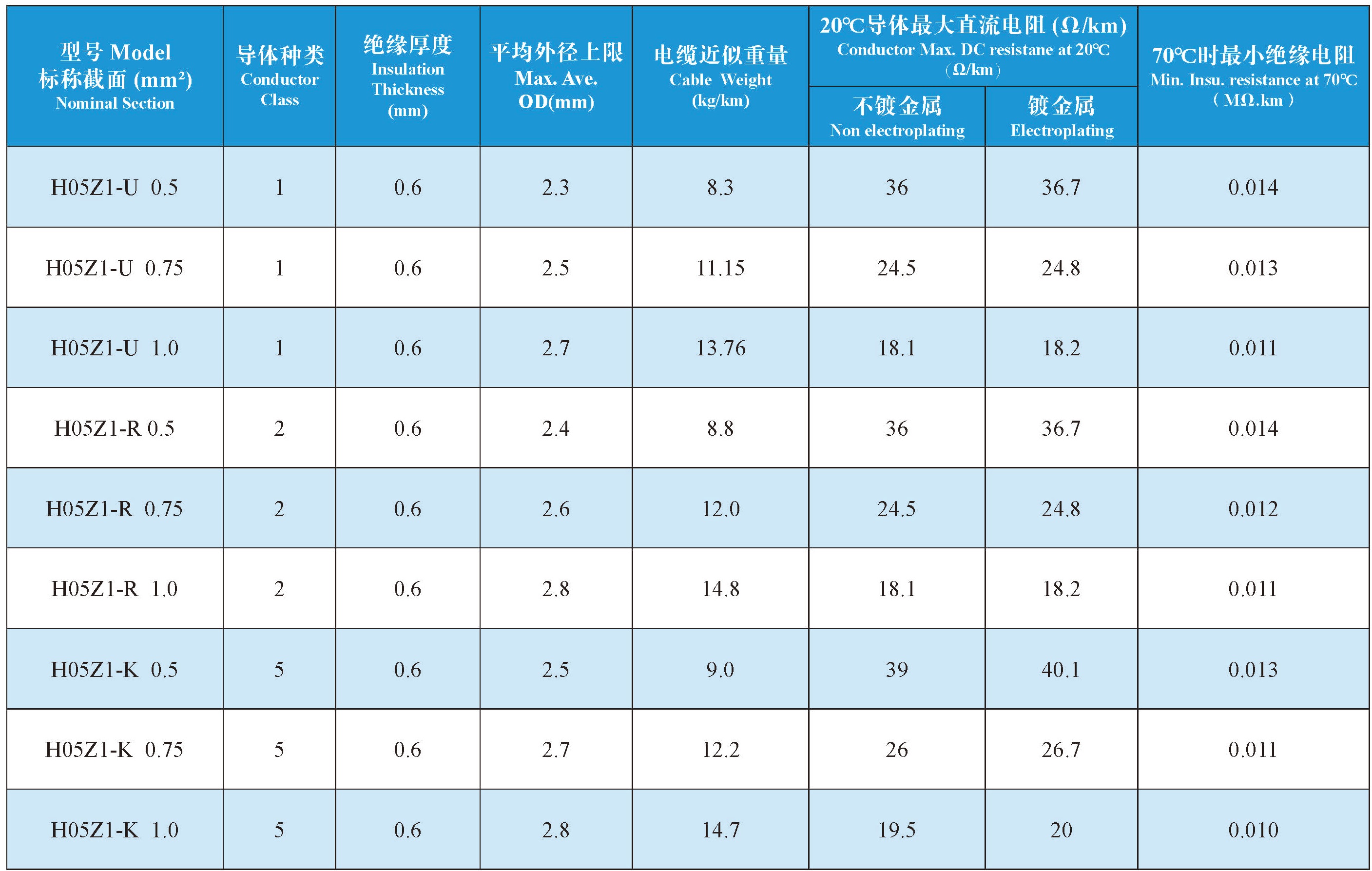

H05Z1-U,H05Z1-R,H05Z1-K Technical Parameters:

Rated Voltage: 300/500V
