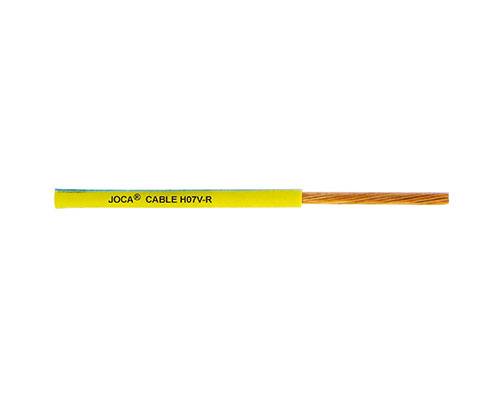

H07V-R

Series : CE Approved Electrical Installation & Hook-up Wire

keywords : H07V-R|CE Approved Electrical Installation & Hook-up Wire|H07V-R

Description : H07V-R Application Scope:Used in electric applianc...

021-57186991

Contact

Description

Parameters

Description

H07V-R Application Scope:

Used in electric appliance, apparatus panel and power divider strips surrounding the internal connection between the electrical and electronic equipment interface between switchgear, design USES half exposed and embedded conduit ?exible equipped with earth wire, resistance to 90℃high temperature environment.

H07V-R Structure:

Conductor: twisted bare copper or tinned copper accord with IEC 60228 VDE 60228 level 5 standards

Insulation: PVC/TI2 conform to DIN VDE 0281, Part1, HD21.1

Color ID: In accordance with HD 402 Standard

Application Standard: HD 21.3 S3, VDE - Part 0281-3, CE Low Voltage Diretive, 73/23 / EEC and 93/68 / EEC

H07V-R Characteristics and compliance:

Features: ?exible single conductor, easy open skin, tailoring, convenient installation, accord with standard of EU coordination

Certi?cation: RoHS CE

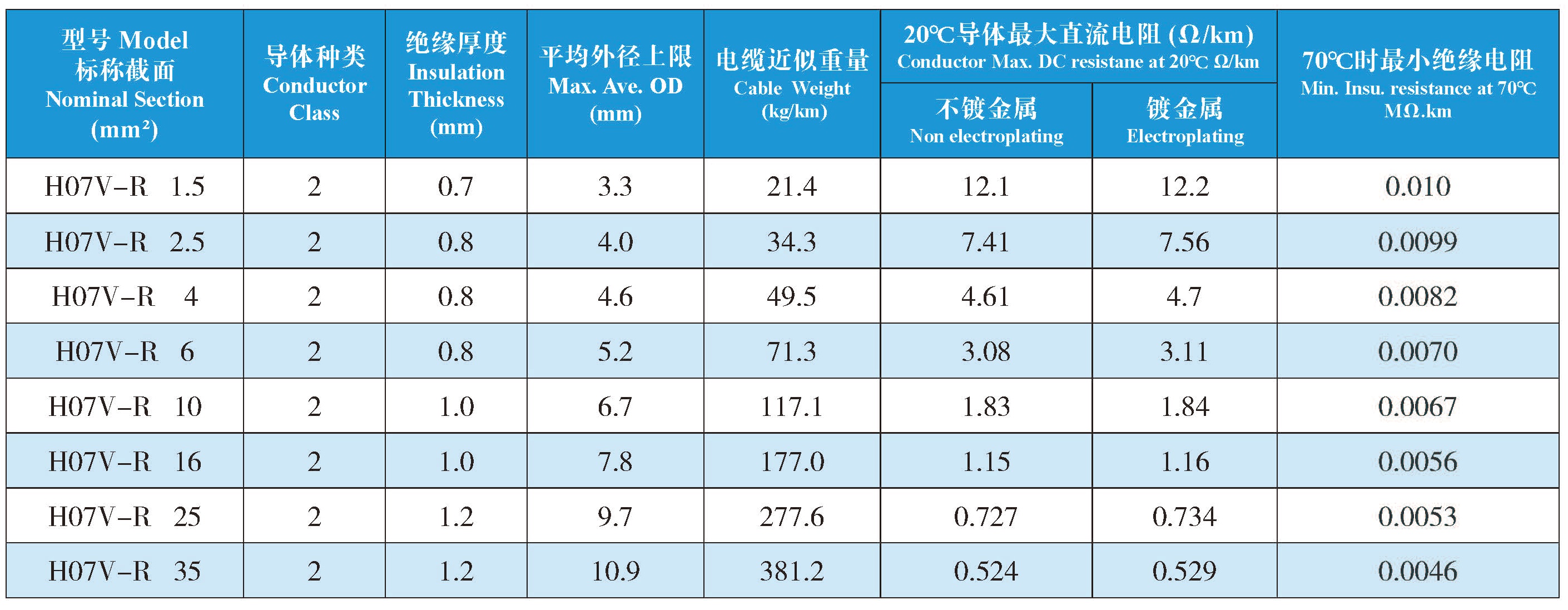

H07V-R Technical Parameters:

Rated Voltage: 450/750V

Test Voltage: 2500V in accordance with DIN VDE 0281 part 2 HD21.2

Min. bending Radius
